Laser cutting is a precise method of cutting a design from a material using a digital file as a guide. It uses a high-powered laser to slice materials such as wood, plastic, glass, metal, and paper into custom shapes and designs.

Laser cutters are versatile tools used by professionals and hobbyists for ranging from quickly prototyping and creating custom cases for electronics projects to making intricate earrings, decorative items, and personalized gifts. Additional applications include cutting precise letters and logos for professional looking signs and building detailed architectural scale models with precise components. in addition to cutting out pieces, laser cutters can engrave complex images on materials.

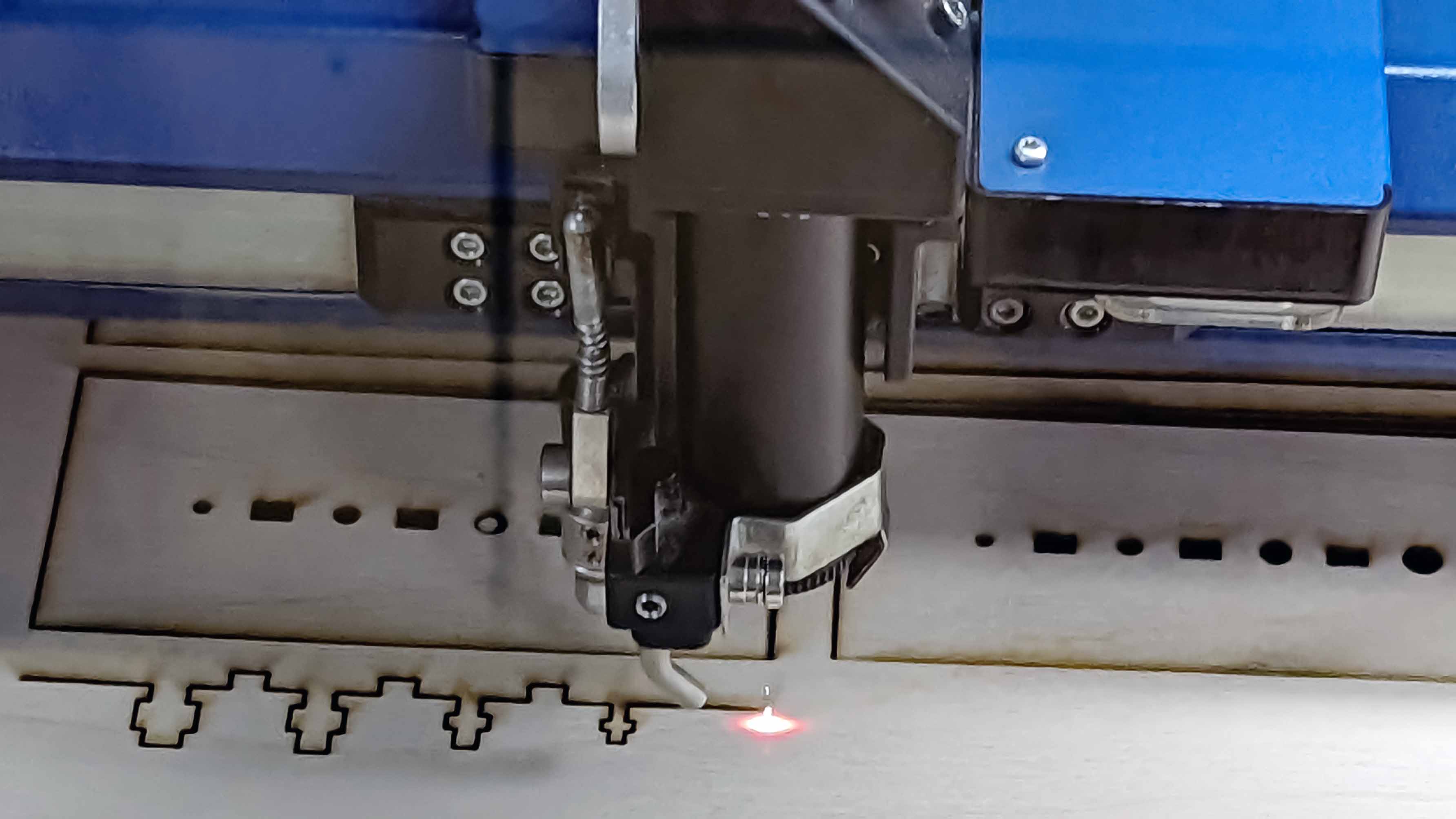

Epilog Laser cutter cutting plywood

Epilog Laser Cutter cutting through plywood

Laser Cutting Concepts and Terminology

Understanding the language of laser cutting is the first step to getting great results.

  • Kerf is the width of the gap or space in the material that is removed by the laser beam as it cuts. It’s important to account for kerf in designs that require precise fits, like press-fit boxes. The kerf varies with material type and thickness.
  • Speed is how fast the laser head moves. Higher speeds with the same power result in a lighter cut or etch.
  • Power the output energy of the laser, usually expressed as a percentage. Higher power is needed for cutting thicker, denser materials.
  • Focus is set by the distance of the laser to the top of the material. The laser must be correctly focused on the material’s surface to produce a clean cut. An out-of-focus beam will result in a wider kerf and sloppy edges.

Vector Cutting

The laser follows a continuous path defined by a vector line (like from a DXF or SVG file) to cut completely through the material. This is used for outlines and shapes.

Raster Engraving

The laser moves back and forth line by line, like an inkjet printer, firing at different power levels to etch an image onto the surface of the material. This is used for photos or filled-in areas.

Vector Engraving (or Scoring)

Similar to vector cutting, but with lower power so the laser only scores the surface instead of cutting through. It’s perfect for creating clean, sharp lines.

Laser Cutting Process

A laser cutter cuts all the way through the material or it etches on the top surface of a material. Laser cutting is different than CNC milling. It does not create pocket cuts that are possible with a CNC but a laser cutter can create very thin kerfs that are not possible with physical router bits on a CNC.

A laser cutter uses vector lines to cut through the substrate or to etch lines on the top surface of the material. Vectors can be manually drawn in a vector program like Adobe Illustrator, Corel Draw, or Inkscape. Vector lines are more commonly exported from CAD programs is readable formats such as DXF.

Laser cutters can also photo etch onto the surface of a material using a raster image or a vector image. Etching works with grayscale images that are inverted since the burnt or etched parts are usually darker on materials like plywood.

Laser Cutting Materials

The type of laser determines which materials you can cut, but some materials are generally universally safe or unsafe.

Common Materials

  • Wood is excellent for both cutting and engraving. Results can vary based on the wood’s glue and density.
  • Acrylic, know by the brand name Plexiglass, cuts cleanly with a flame-polished edge and engraves beautifully.
  • Cardboard and paper cut very easily at high speed and low power. Great for quick prototyping and stencils.
  • Leather can be cut and engraved, but requires good ventilation.
  • Delrin (Acetal) is an engineering plastic that cuts very cleanly and is great for mechanical parts.

Materials to Avoid Due to Safety

Never cut these materials in a standard CO2 laser cutter as they release hazardous gases or pose a significant fire risk.

  • Polyvinyl Chloride (PVC) plastic releases chlorine gas when cut, which is toxic and deadly to humans and will corrode the inside of your machine.
  • Polycarbonate, know by the brand name Lexan, is softer than acrylic. It absorbs infrared radiation, like the red light from the laser, and tends to melt and catch fire.
  • Acrylonitrile butadiene styrene (ABS) plastic melts and releases cyanide gas.
  • Many composites such as fiberglass or carbon fiber release harmful fumes and the composite resins do not cut well.
  • High Density Polyethylene (HDPE) melts when cut with a laser.

Laser Cutting Guides

Laser Cutting Fusion 360

Fusion 360 is a parametric modeling program well suited for createing complex 3D models for output to a laser cutter.
